High Temperature Plug Fan Assemblies

Models: AFP (axial), MFC (forward curved), OPB (radial design) and BIF (backward inclined)

Plug Fan Description:
Plug fans include: Impeller, shaft, bearings, insulated plug and bearing pedestal. AFP (axial) plug fan also includes a cone assembly.

Options for plug fan assemblies:

  • Stuffing box type shaft seal.
  • Inlet Cone
  • Diffuser for MFC (forward curved) and OPB (radial bladed) plug fans.
  • Scroll Housing for MFC, OPB and BIF plug fan design are available.

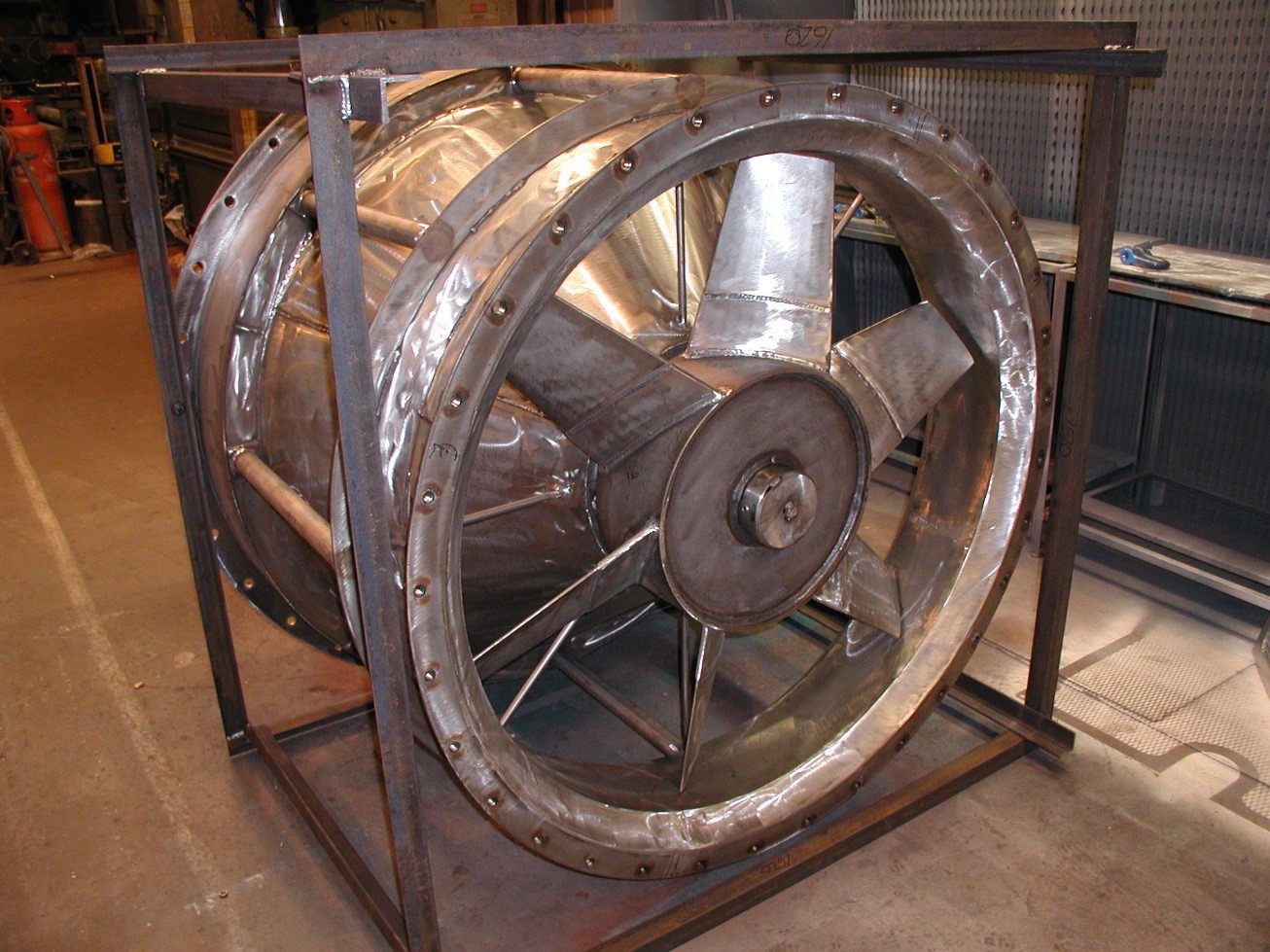

AFPAxialPlugFanwithCone
AFP Axial Plug Fan with Cone Assembly.

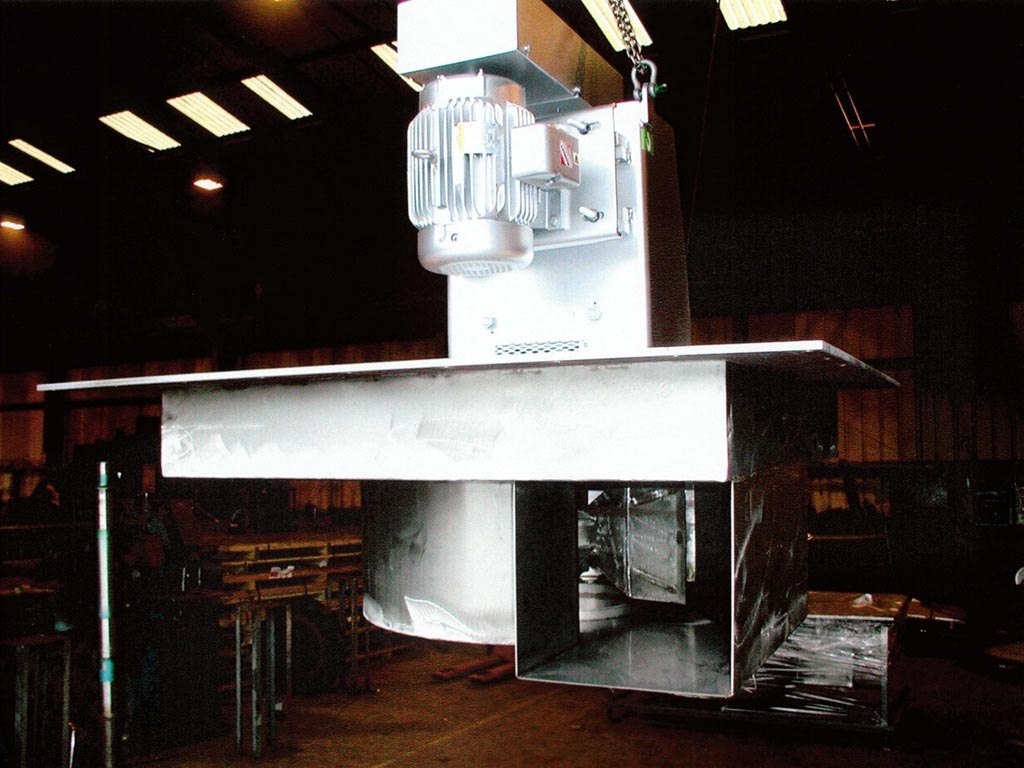

OPBRadialBladedBeltDrivenPlugFan
OPB Radial Bladed Belt Driven Plug Fan Assembly.

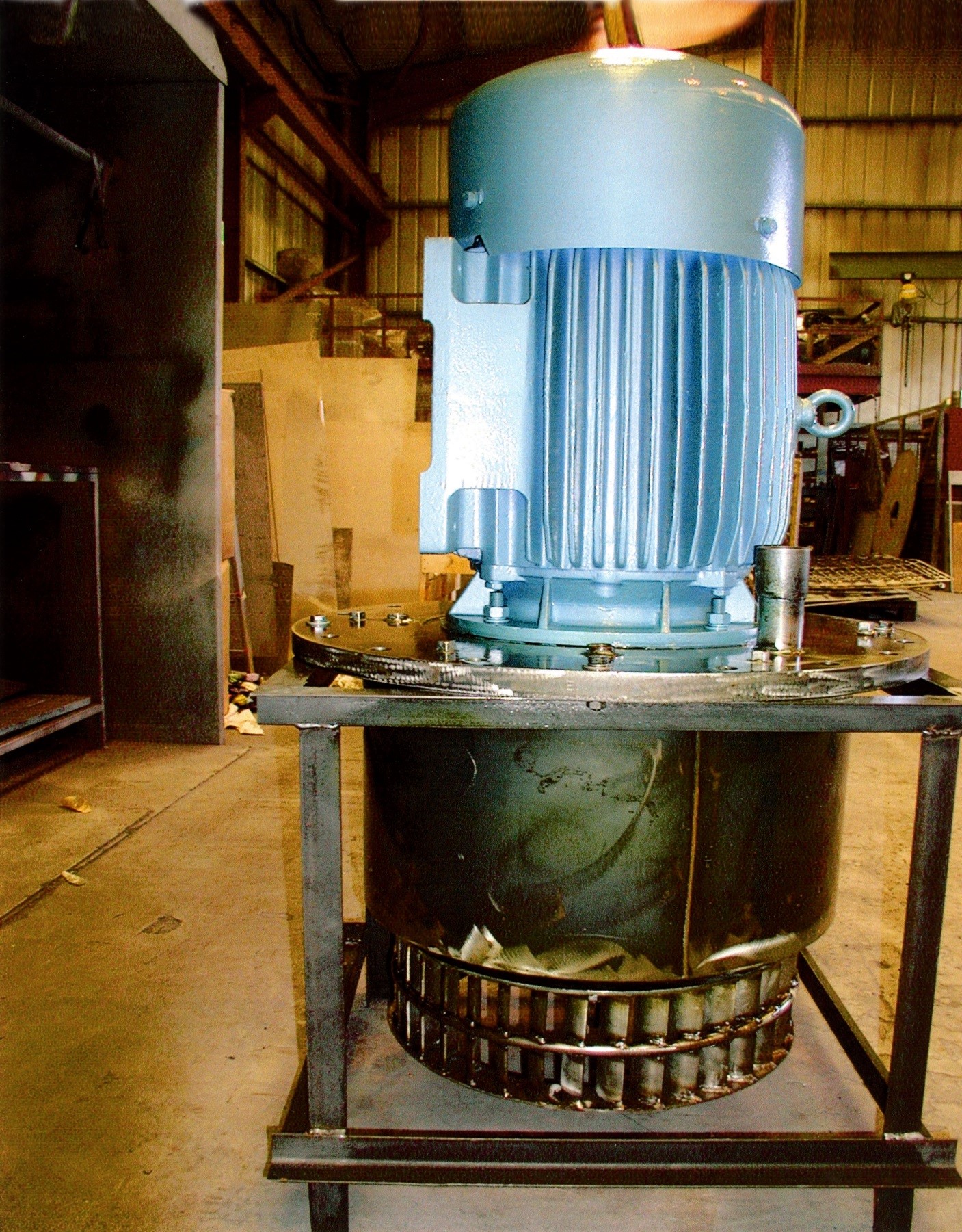

MFCForwardCurvedPlugFan
MFC Forward Curved Plug Fan Assembly.

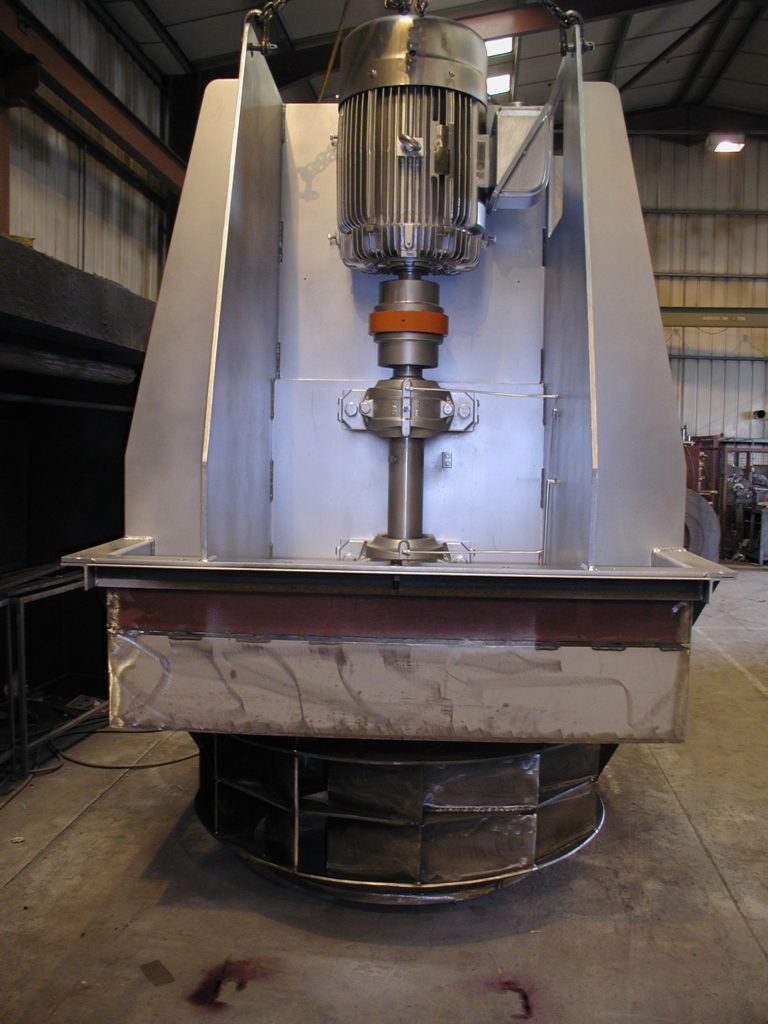

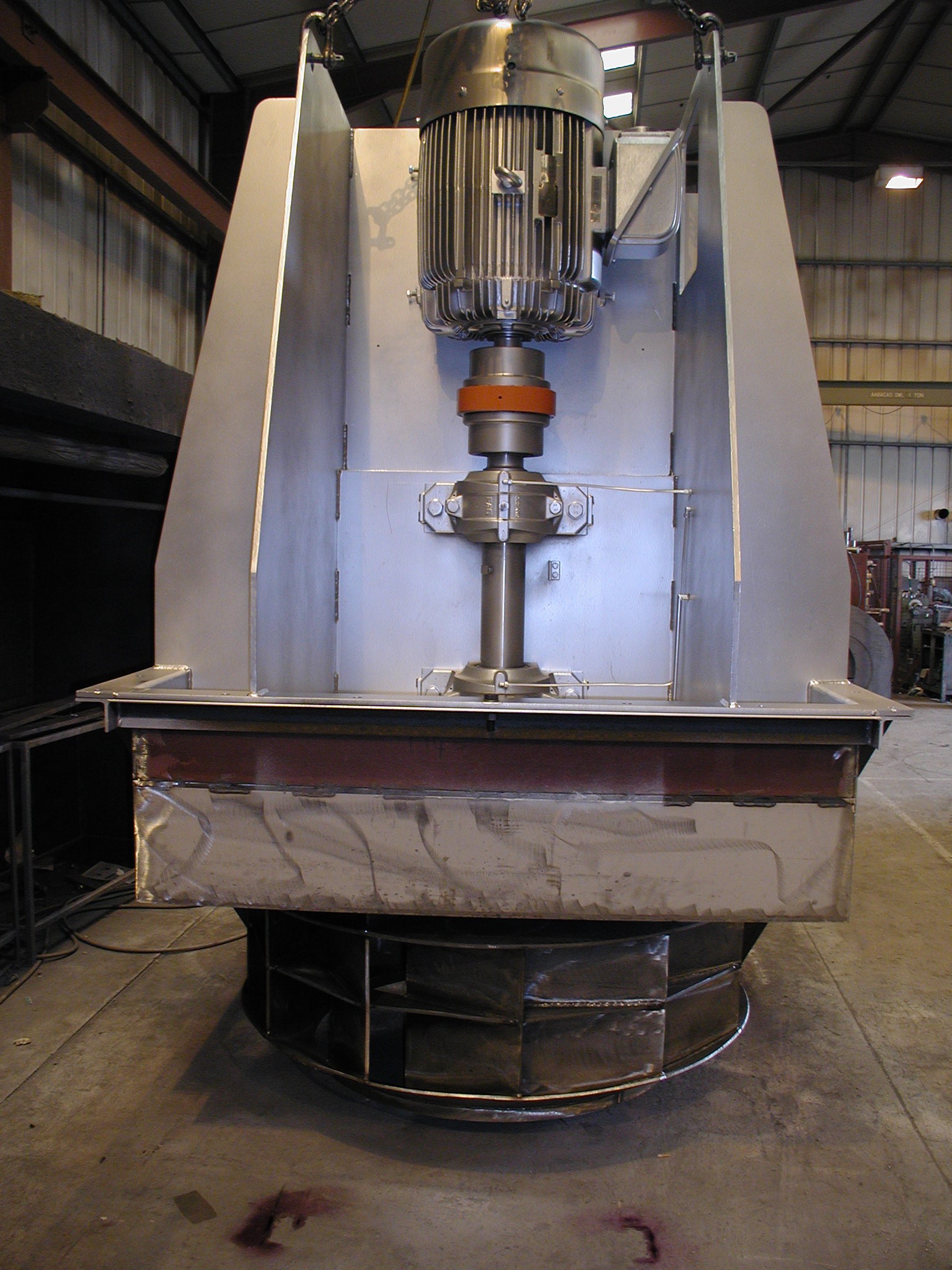

BIFBackwardInclinedPlugFan
BIF Backward Inclined Plug Fan Assembly.
